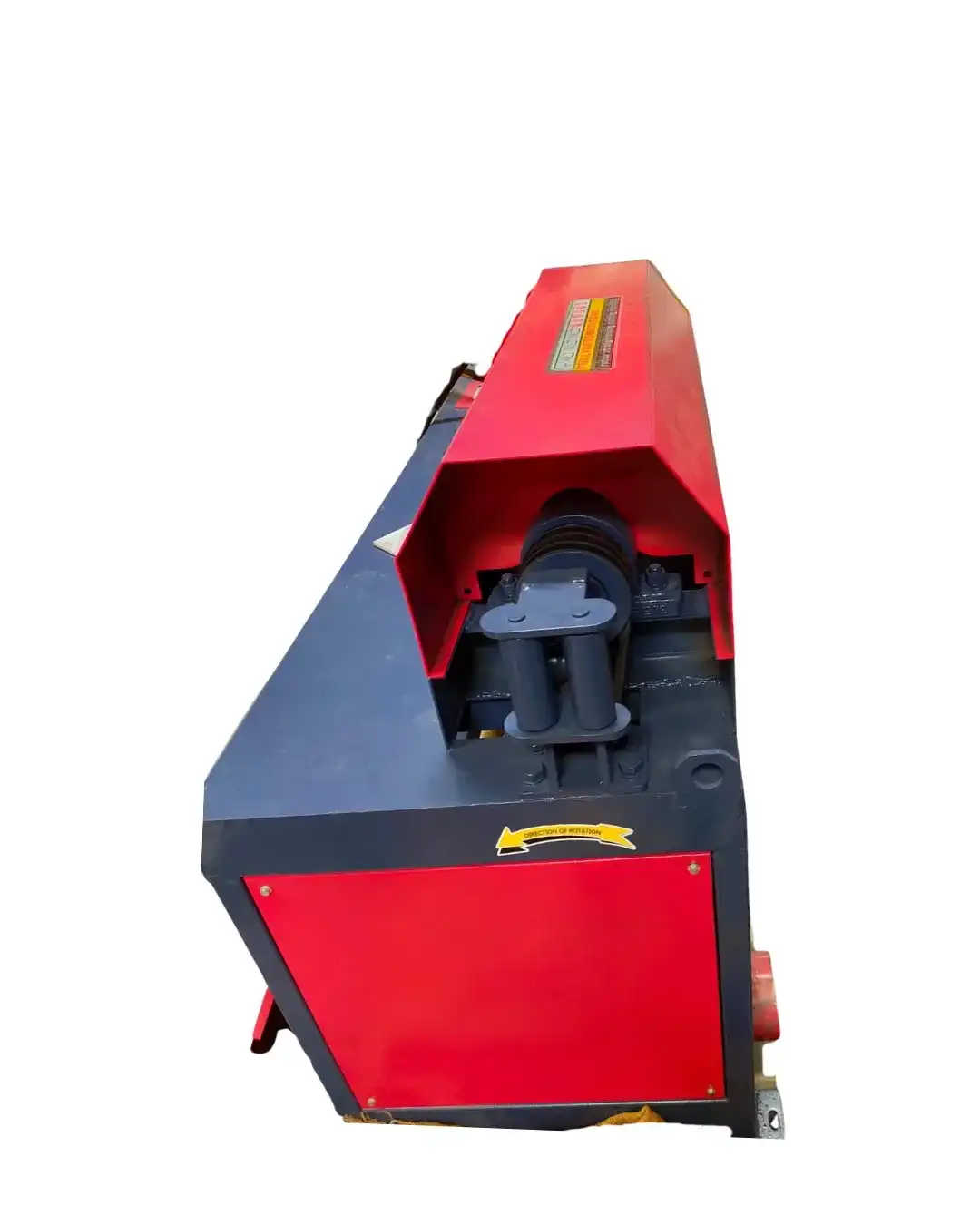

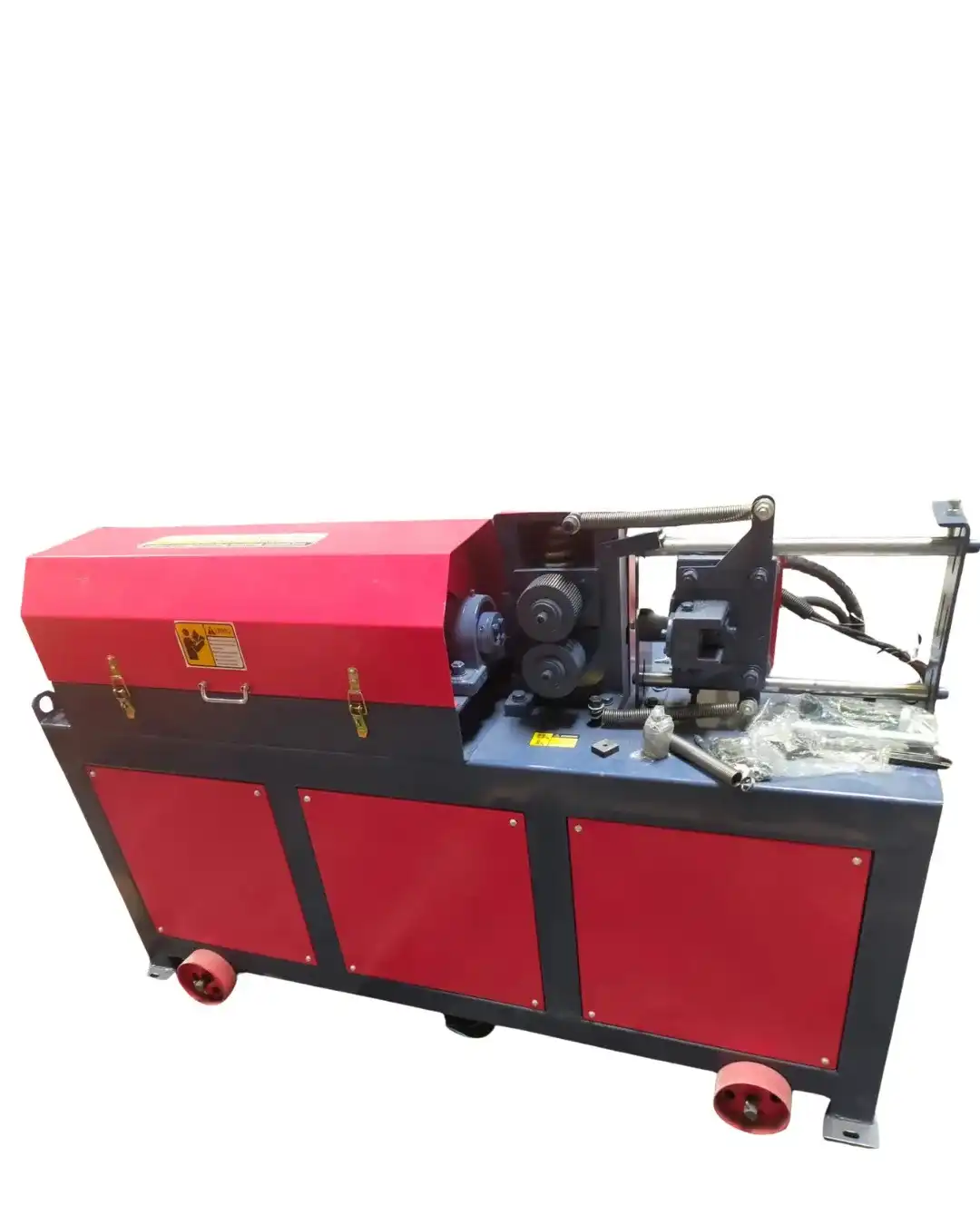

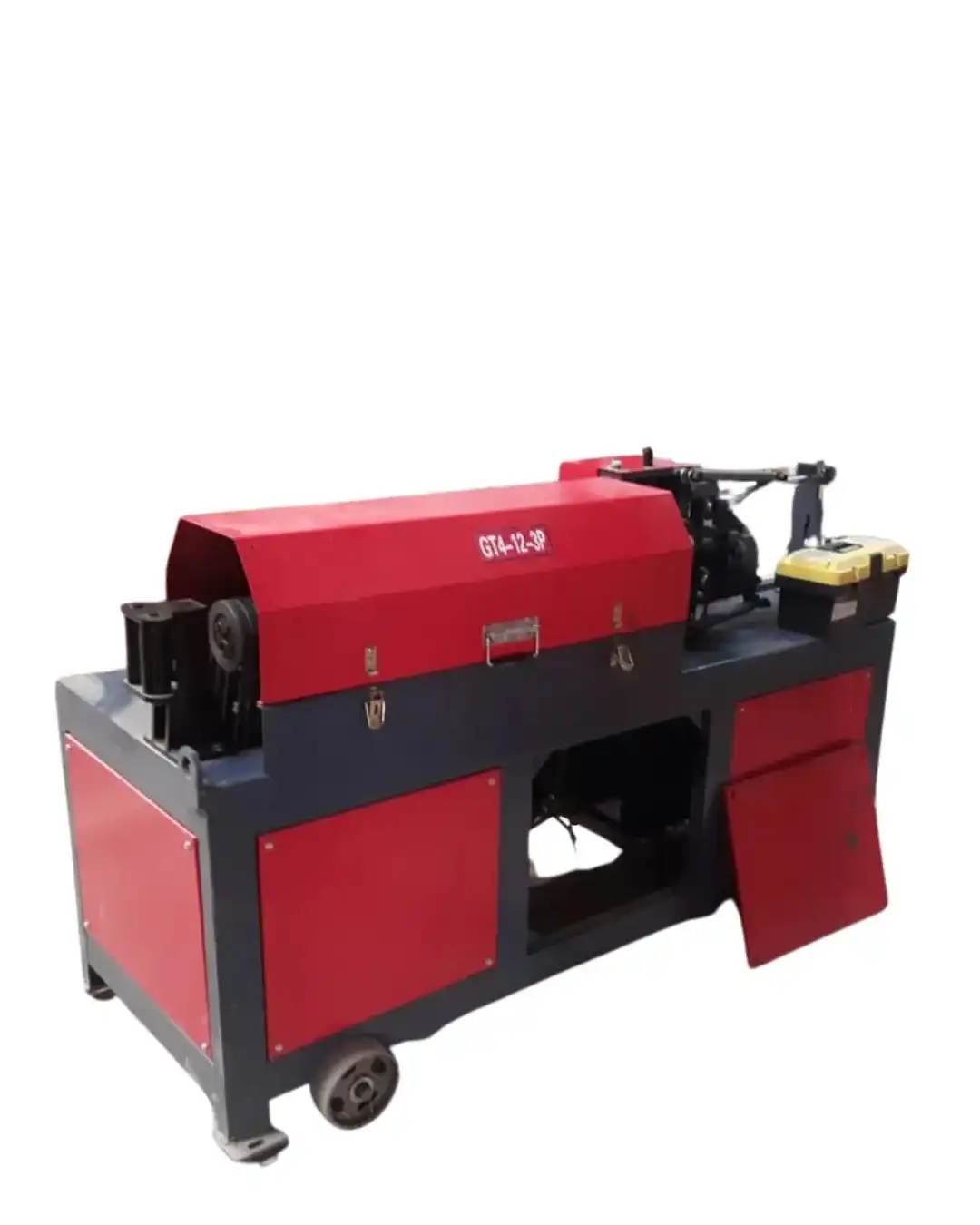

Bar Decoiling Machine - GT4-12-3P
₹ 130000
Technical Specifications
| Specification | Value |
|---|---|
| Model | GT4-12-3P |
| Round Bar | 4–12 mm |
| II Class Bar | 4–10 mm |
| Straightening Wheel | 50×62 mm |
| Cutting Space | 900 mm |
| Error of Cutting Length | ±0.5 |
| Motor Power | 9 kW |
| Input Voltage | 380V |
| Motor Speed | 1440 rpm |
| Straightening Speed | 52 m/min |
| Dimension | 1860×770×1140 mm |
| Weight | 530 kg |
Product Description
The GT4-12-3P Decoiling Machine is a heavy-duty machine designed for high-volume straightening and decoiling of steel bars. It supports 4–12 mm bars and ensures continuous feeding, reduced material wastage, and high efficiency. Ideal for large construction and infrastructure projects.
