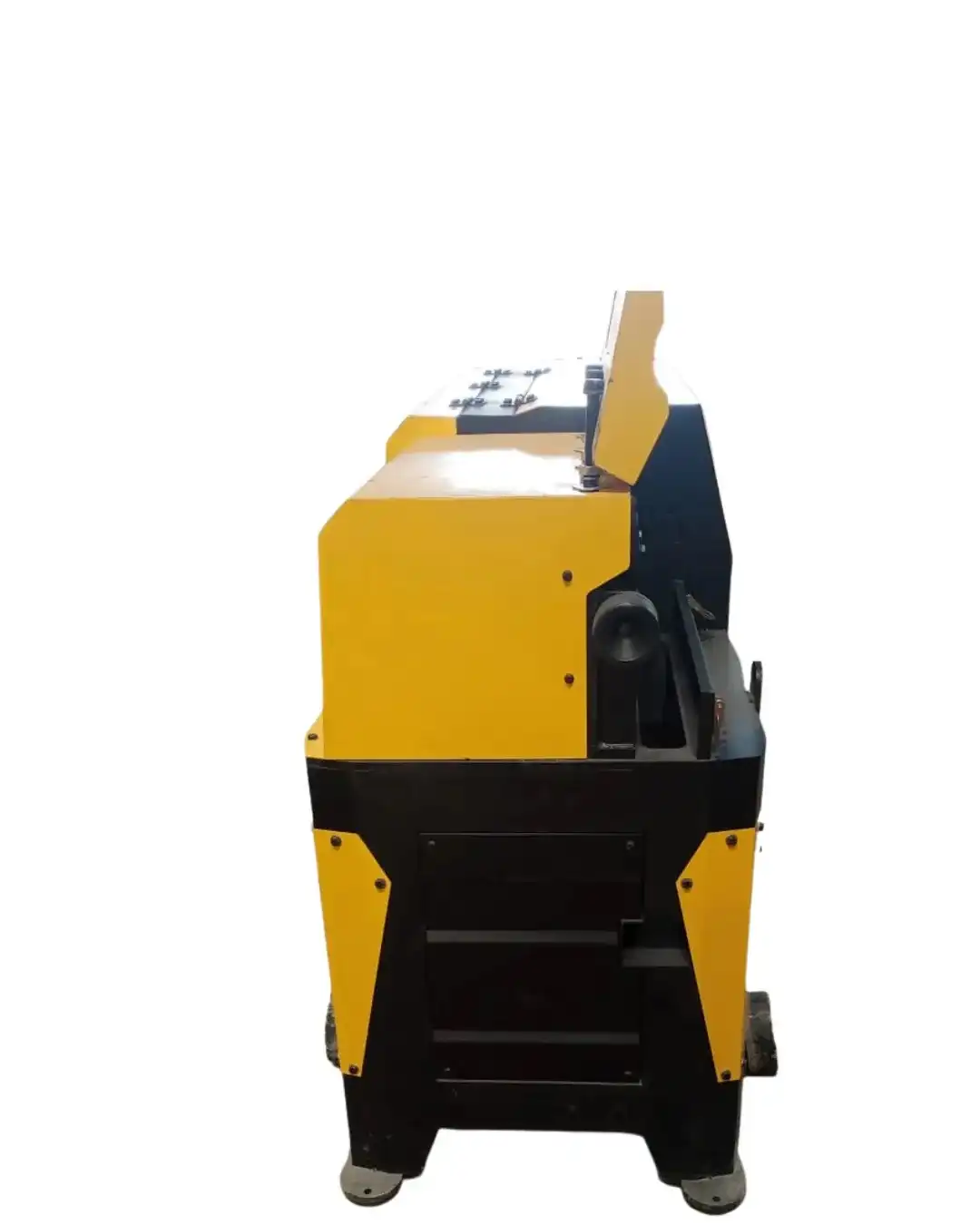

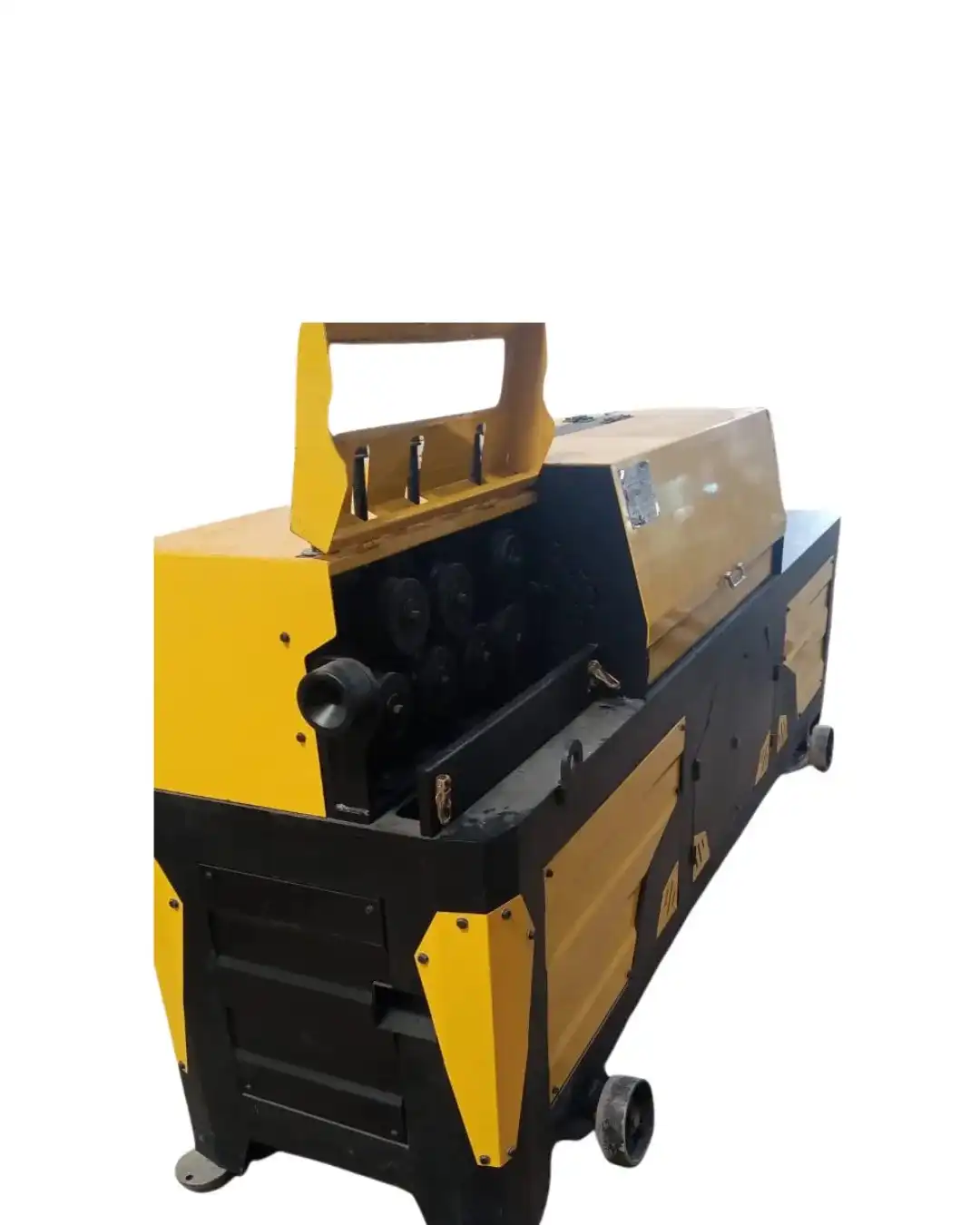

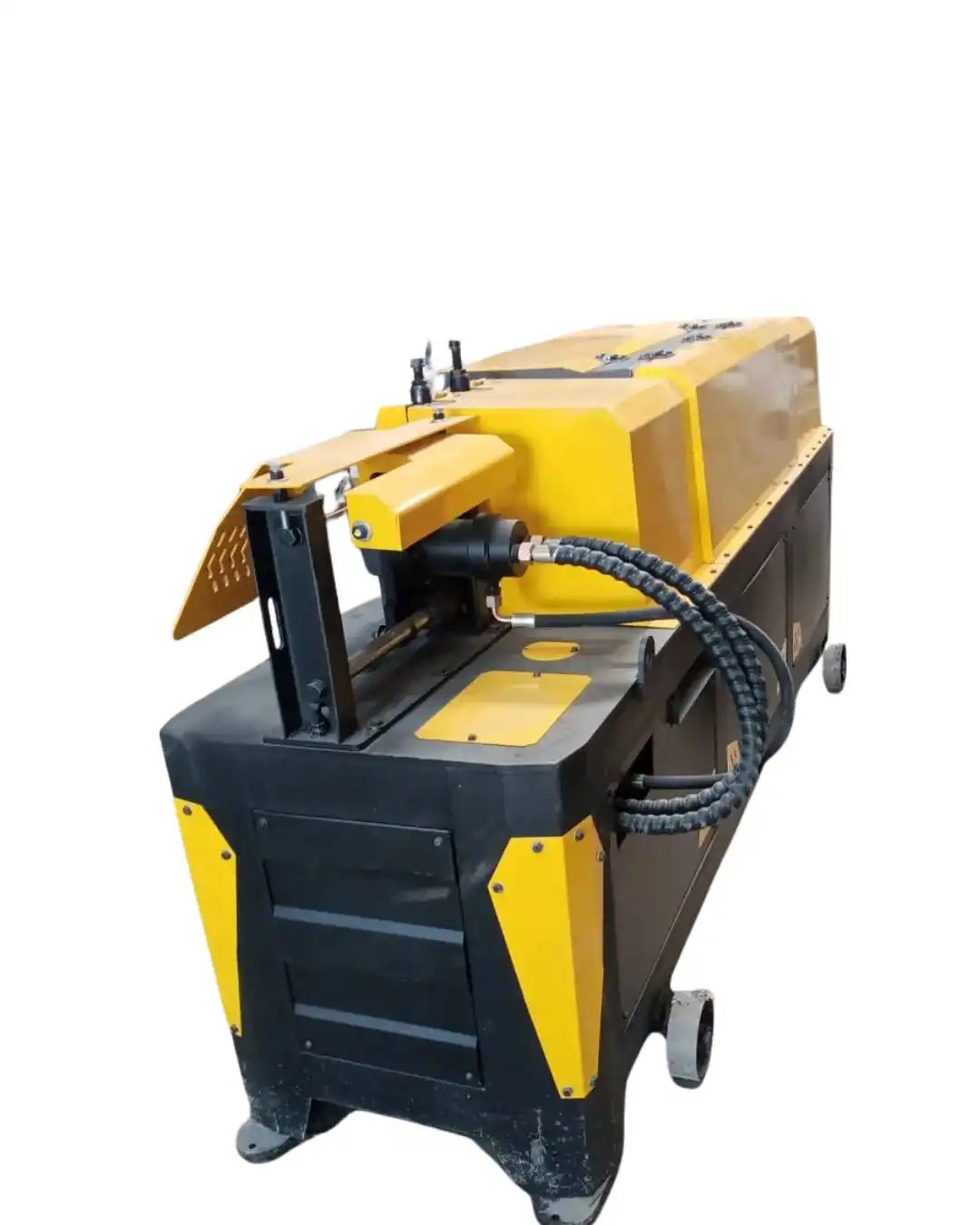

Rebar Decoiling Machine - GTQ4-14-3P
₹ 415000
Technical Specifications
| Specification | Value |
|---|---|
| Model No. | GTQ4-14-3P |
| Straightening Range | 4–12 mm (Ø 650N/mm²) |
| Pulling Speed | 0–70 m/min |
| Noise Value | ≤80 dB(A) |
| Cutting Time | 0.8–1.0 sec |
| Traction Motor | 15 kW – 4P |
| Cutting Motor | 5.5 kW – 4P |
| Unloading Rack Length | 8 m |
| Weight | 1100 kg |
| Dimension | 2900×700×1300 mm |
Product Description
The GTQ4-14-3P Rebar Decoiling Machine is a high-performance solution for straightening and cutting coiled steel bars. It is designed for demanding construction environments and supports 4–14 mm bars. The machine ensures continuous feeding, high precision, and minimal material waste.
