Iron Worker Machine QA32-10

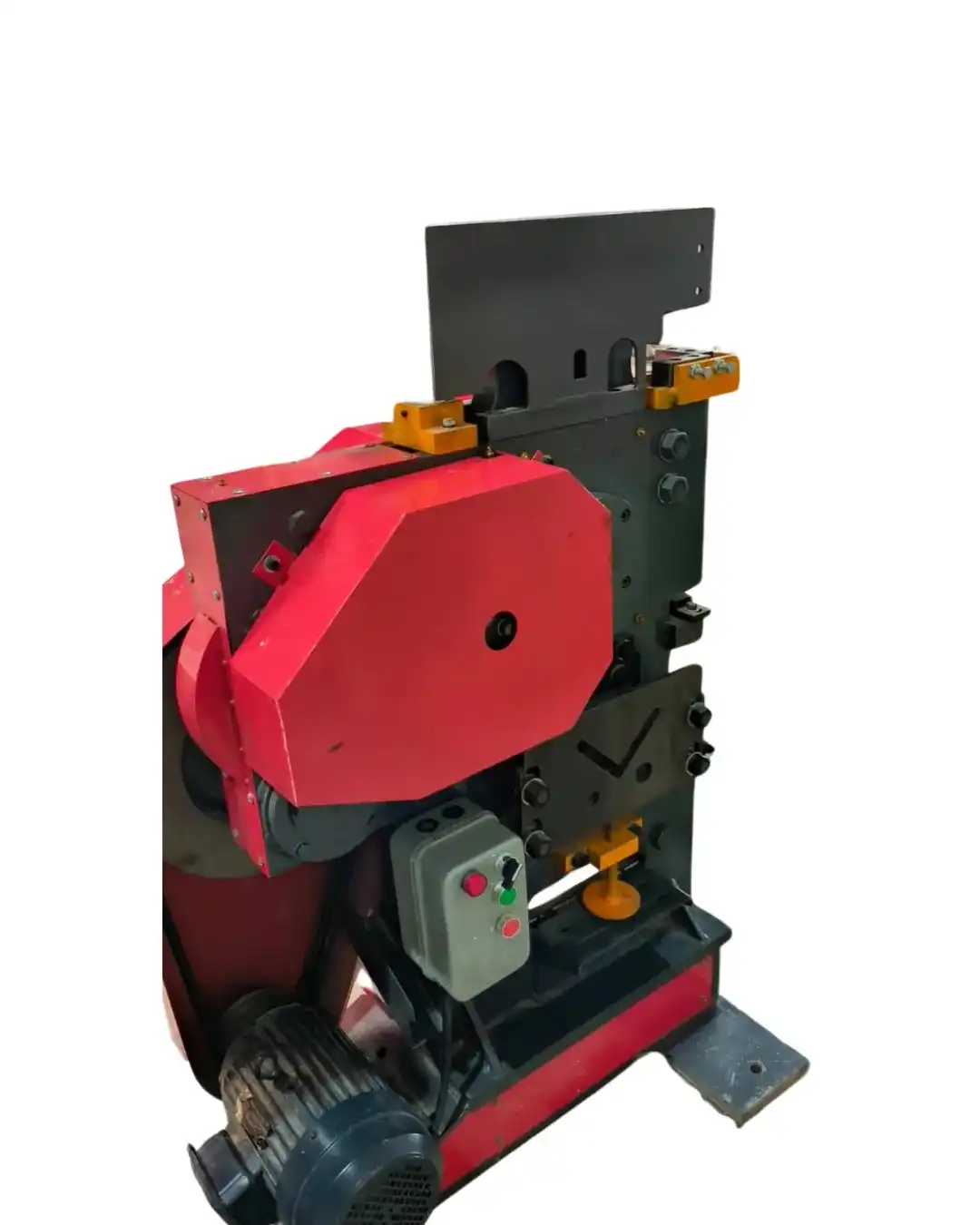

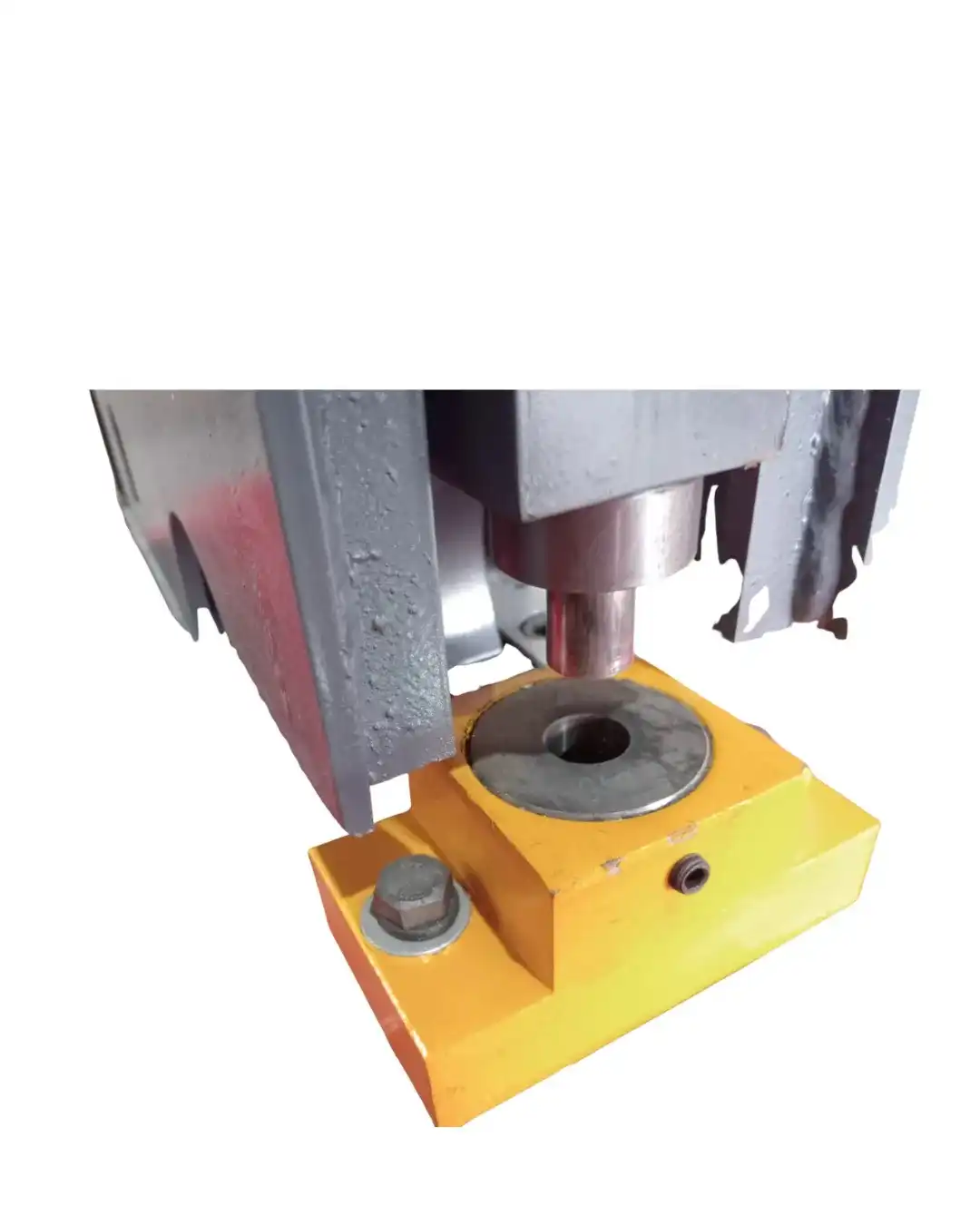

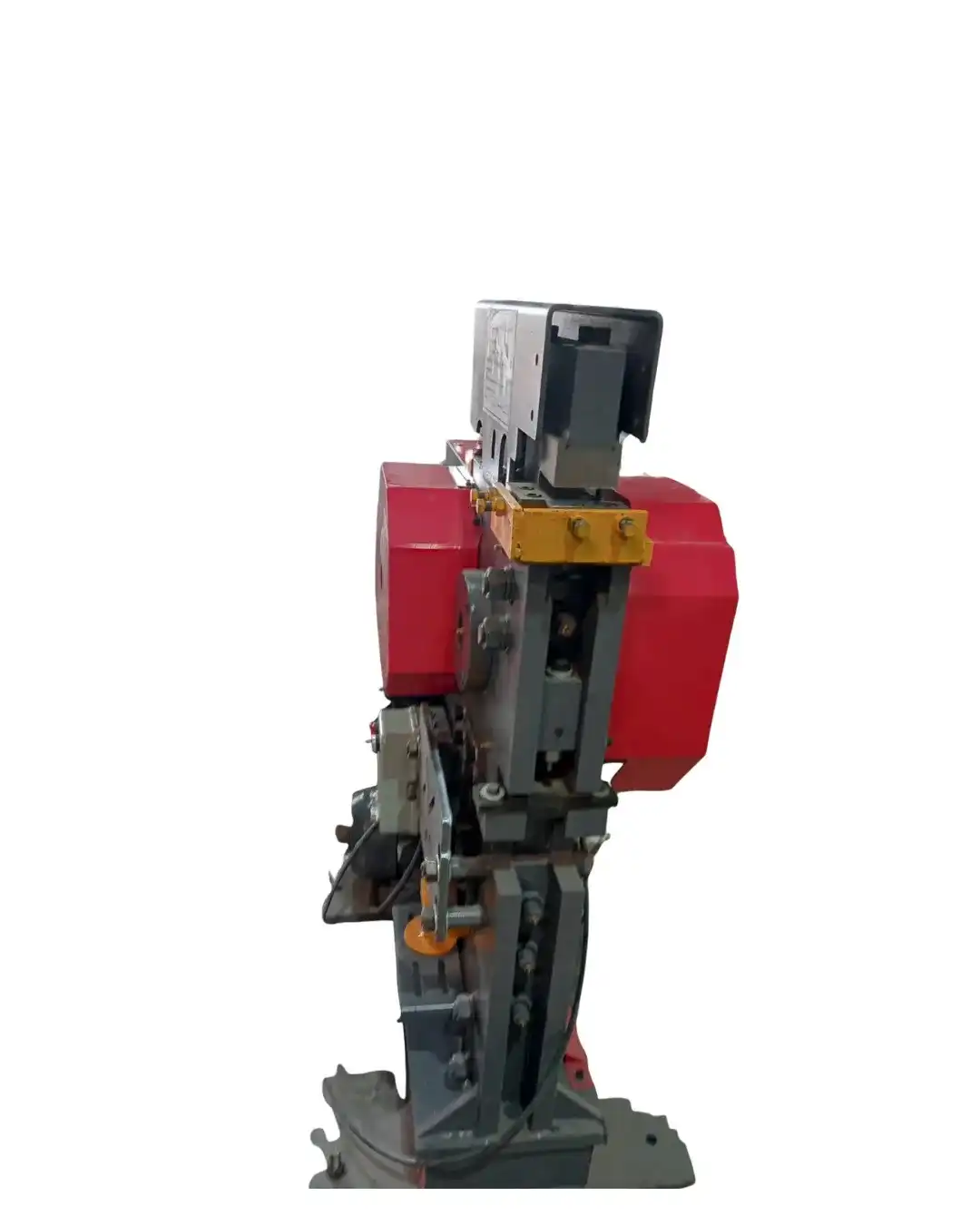

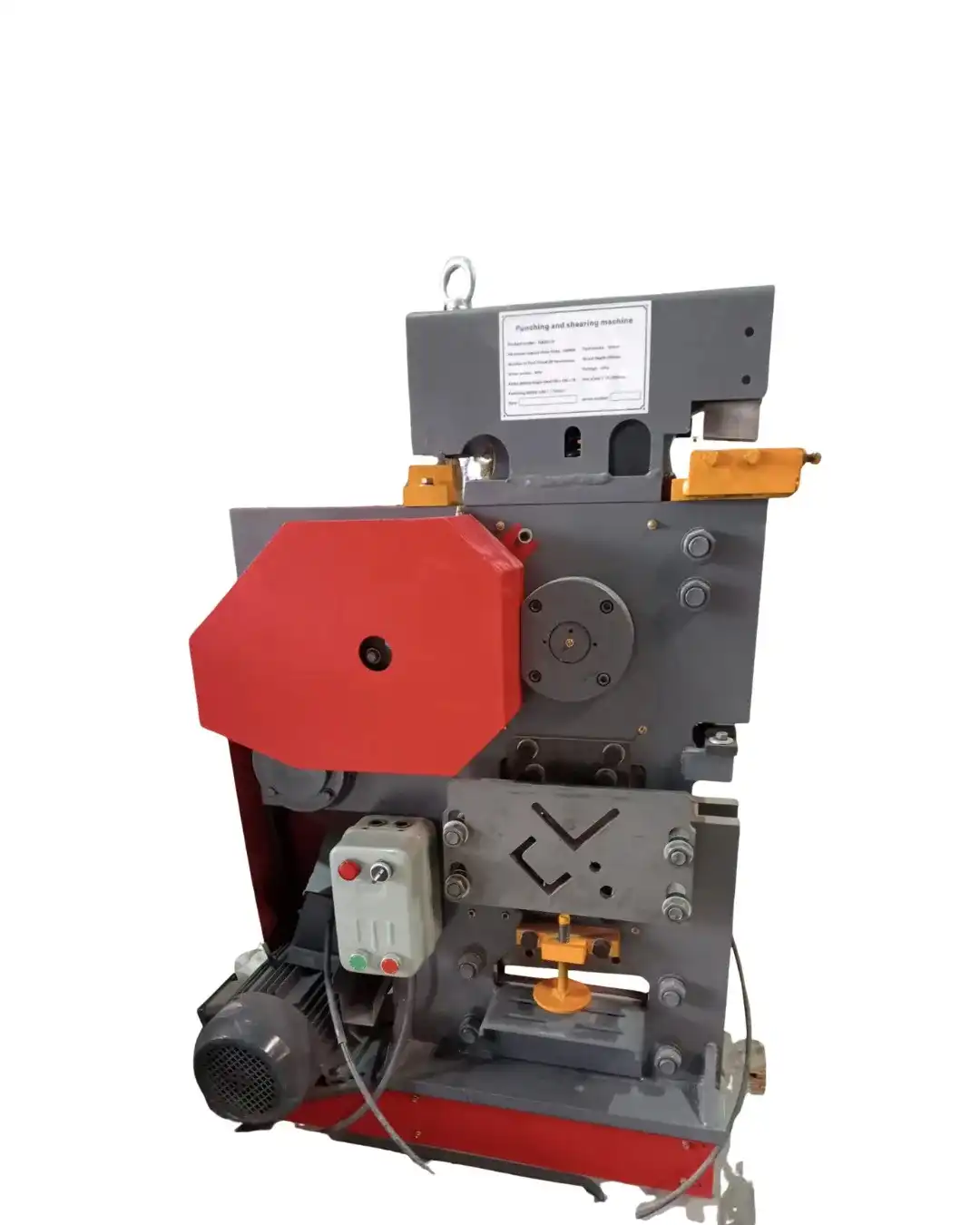

Iron Worker Machine QA32-10 image 1Iron Worker Machine QA32-10 image 2Iron Worker Machine QA32-10 image 3Iron Worker Machine QA32-10 image 4Iron Worker Machine QA32-10 image 5

Iron Worker Machine QA32-10

₹ 195000

Call Now

Technical Specifications

SpecificationValue
ModelQA32-10
Shear Strength500kN
Tool Travel30mm
Stroke Times30t/min
Motor Power3kW
Voltage380V
Throat Depth100mm
Iron Plate10×200mm
Punching AbilityΦ22 (10mm)
Shear AbilityAngle Steel 100×100×10
Gross Weight690kg Approx.
Dimension900×600×1250mm
Weight661kg

Product Description

The QA32-10 Punching and Shearing Machine is a powerful metal fabrication machine designed for cutting and punching steel plates, angles, and structural sections in construction workshops.
