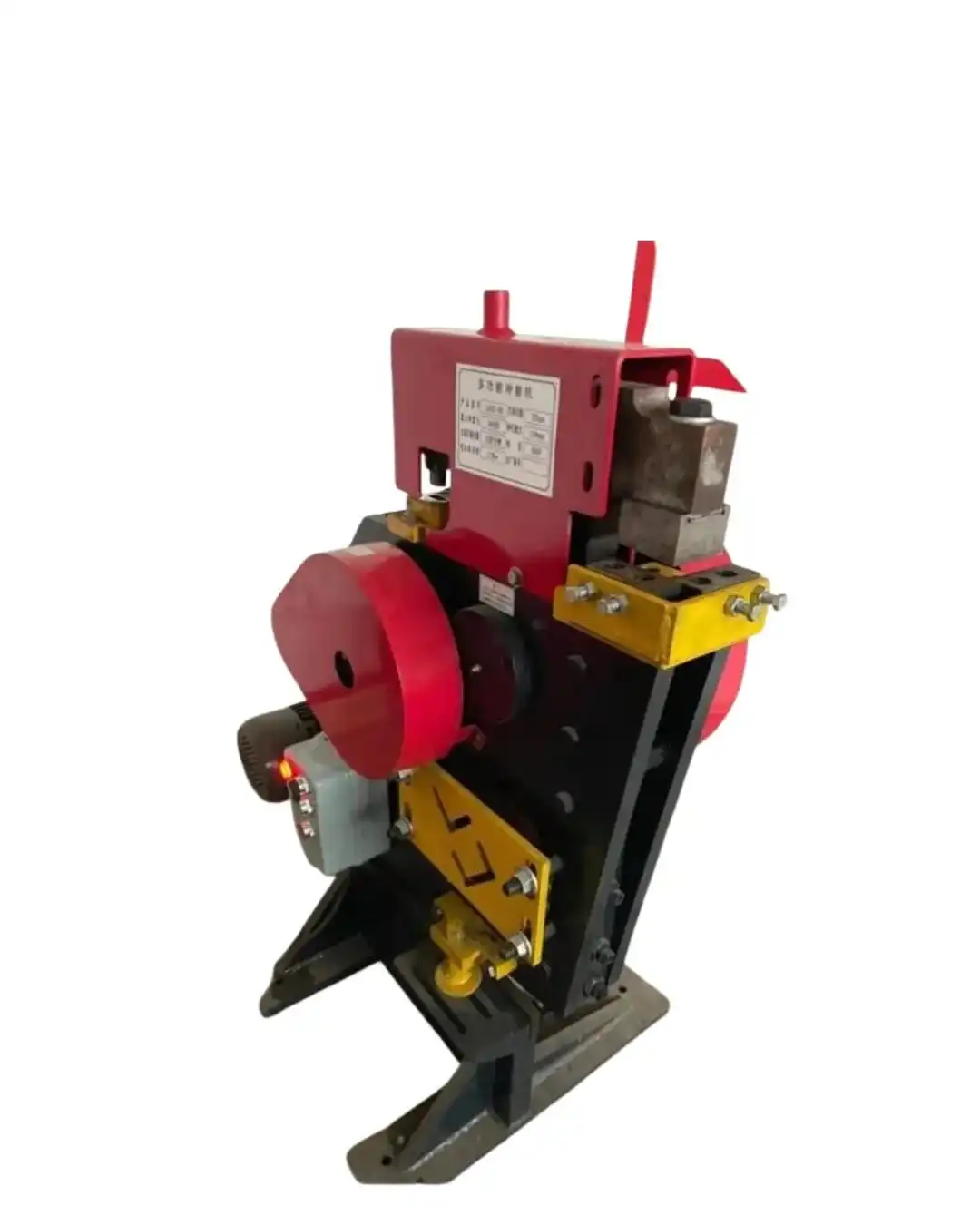

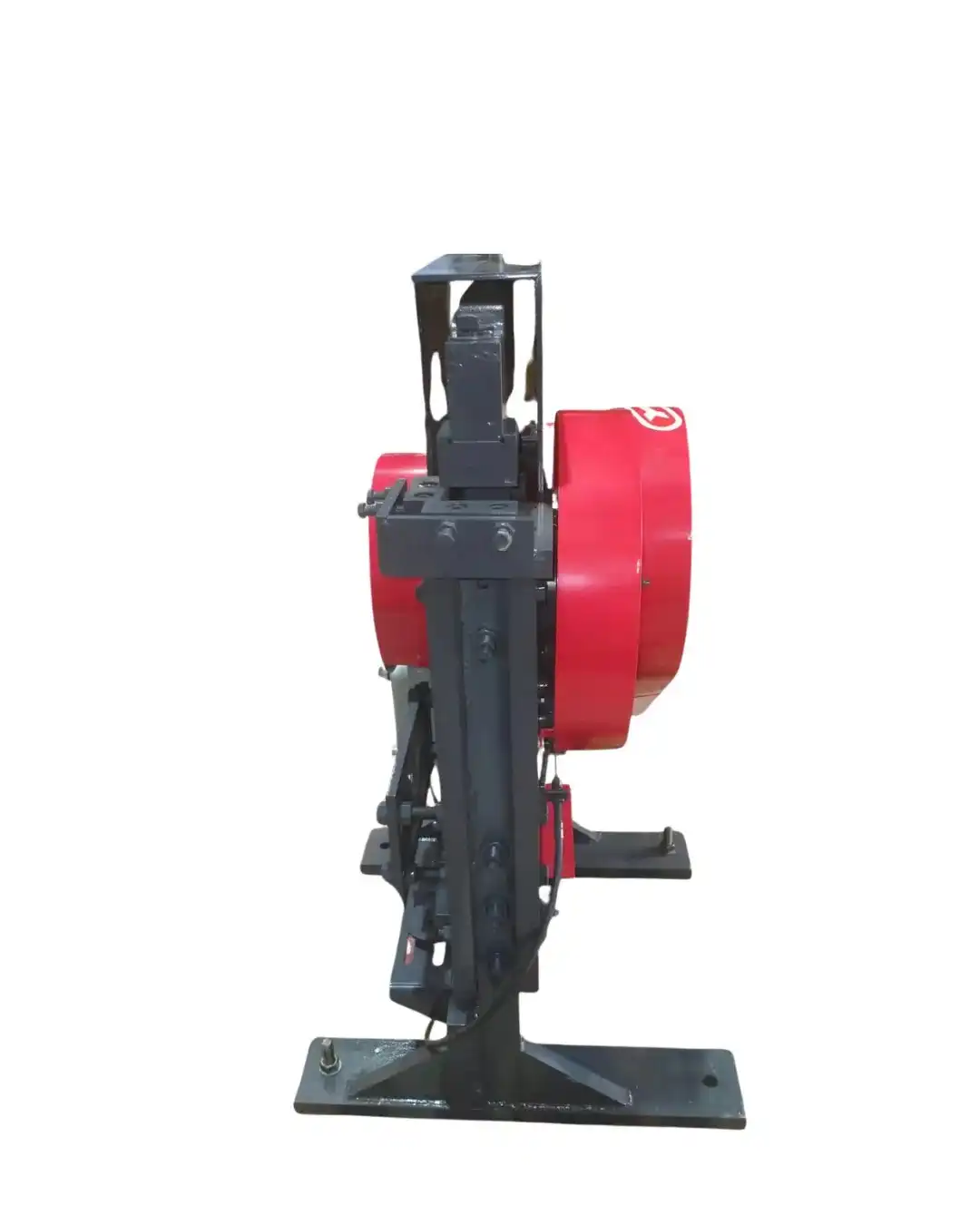

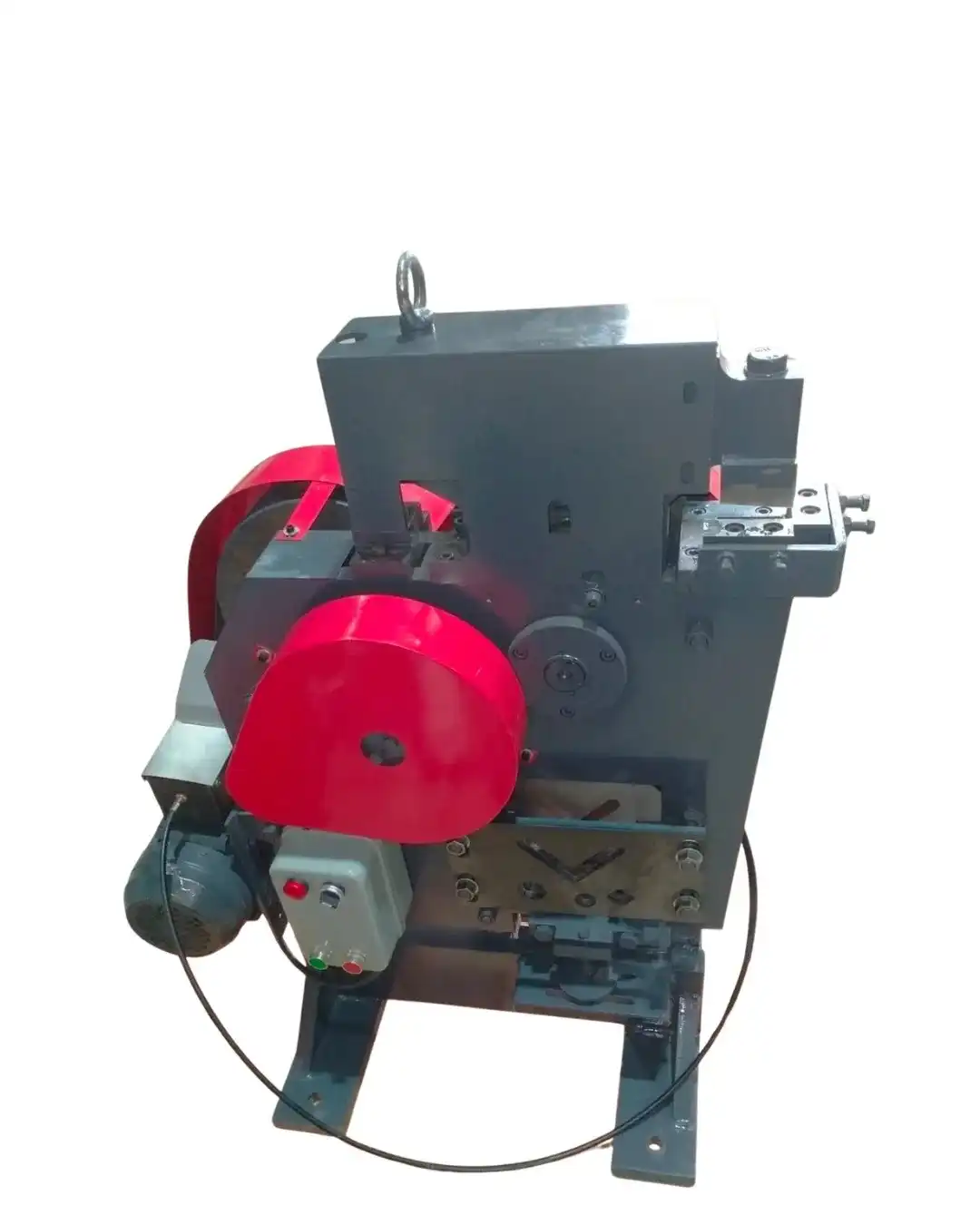

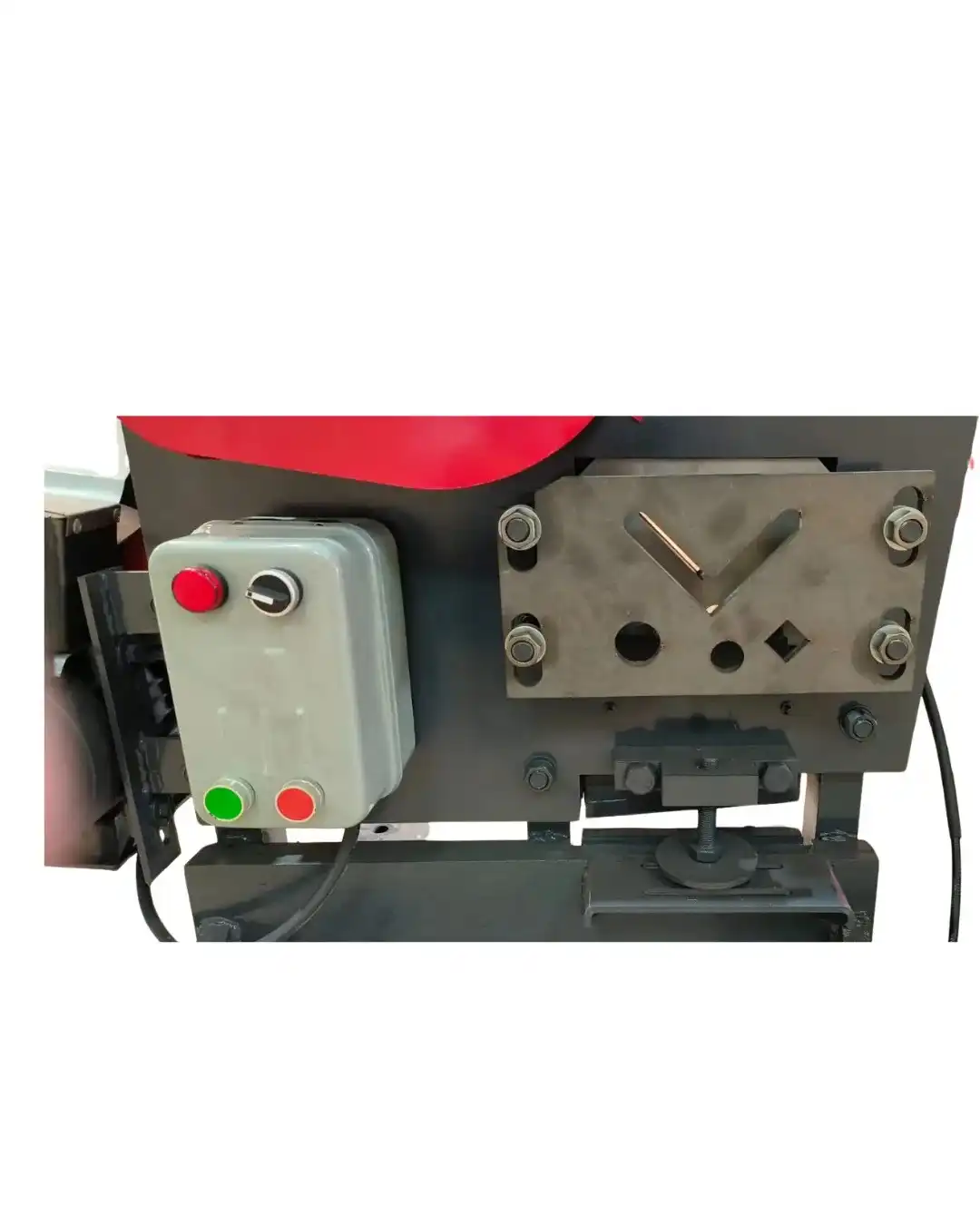

Iron Worker - QA32-8B
₹ 138000
Technical Specifications
| Specification | Value |
|---|---|
| Model | QA32-8 |
| Shear Strength | 360kN |
| Tool Travel | 27mm |
| Stroke Times | 30t/min |
| Motor Power | 2.2kW |
| Iron Plate | 8×8×150mm |
| Punching Ability | Φ22 (8mm) |
| Shear Ability | Angle Steel 75×75×8 |
| Gross Weight | 450kg Approx. |
| Dimension | 900×600×1100mm |
| Voltage | 380V |
| Weight | 425kg |
Product Description
The QA32-8 Punching and Shearing Machine is a heavy-duty metalworking machine designed for cutting, punching, and shaping steel plates, angles, and metal sections with high precision.
