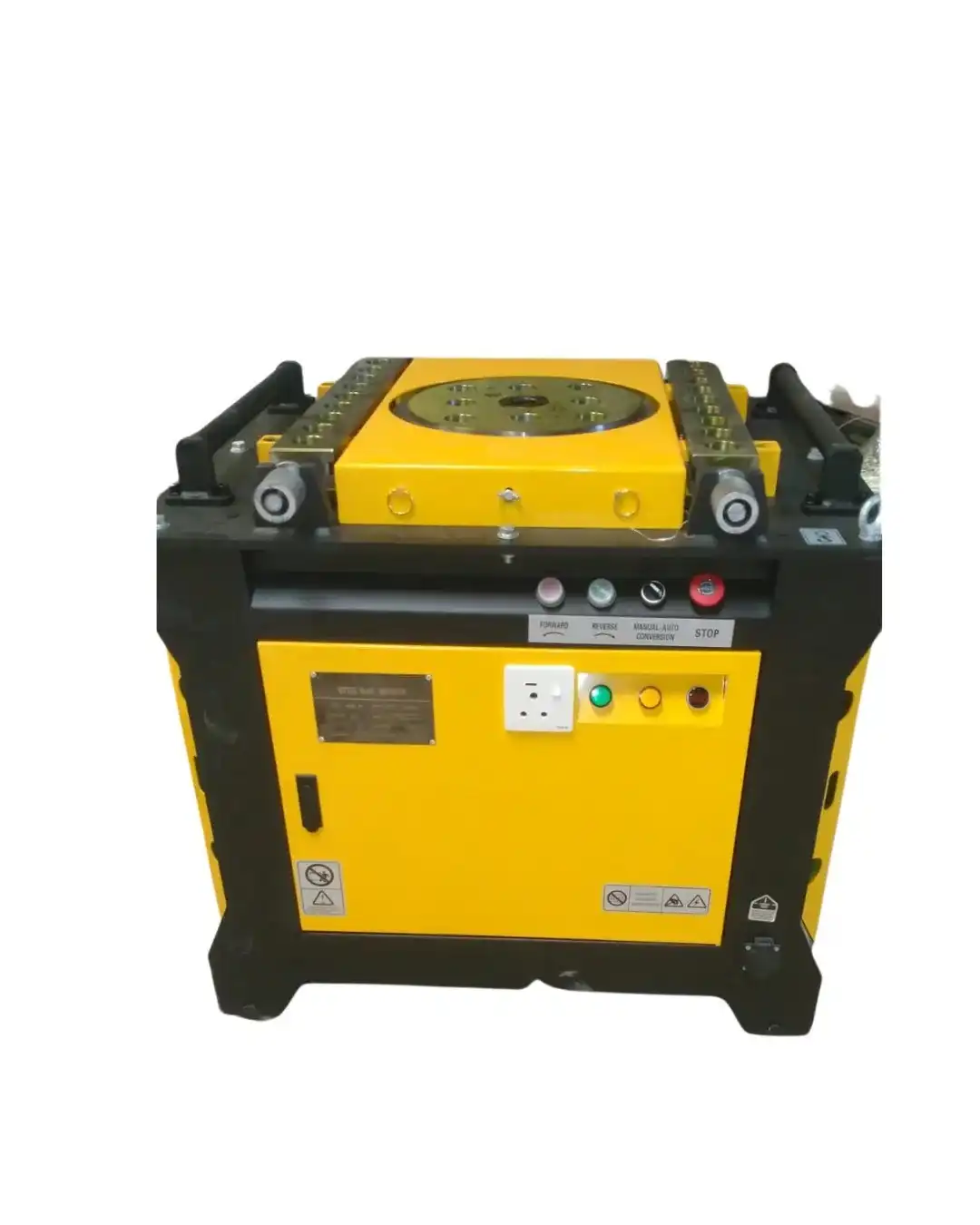

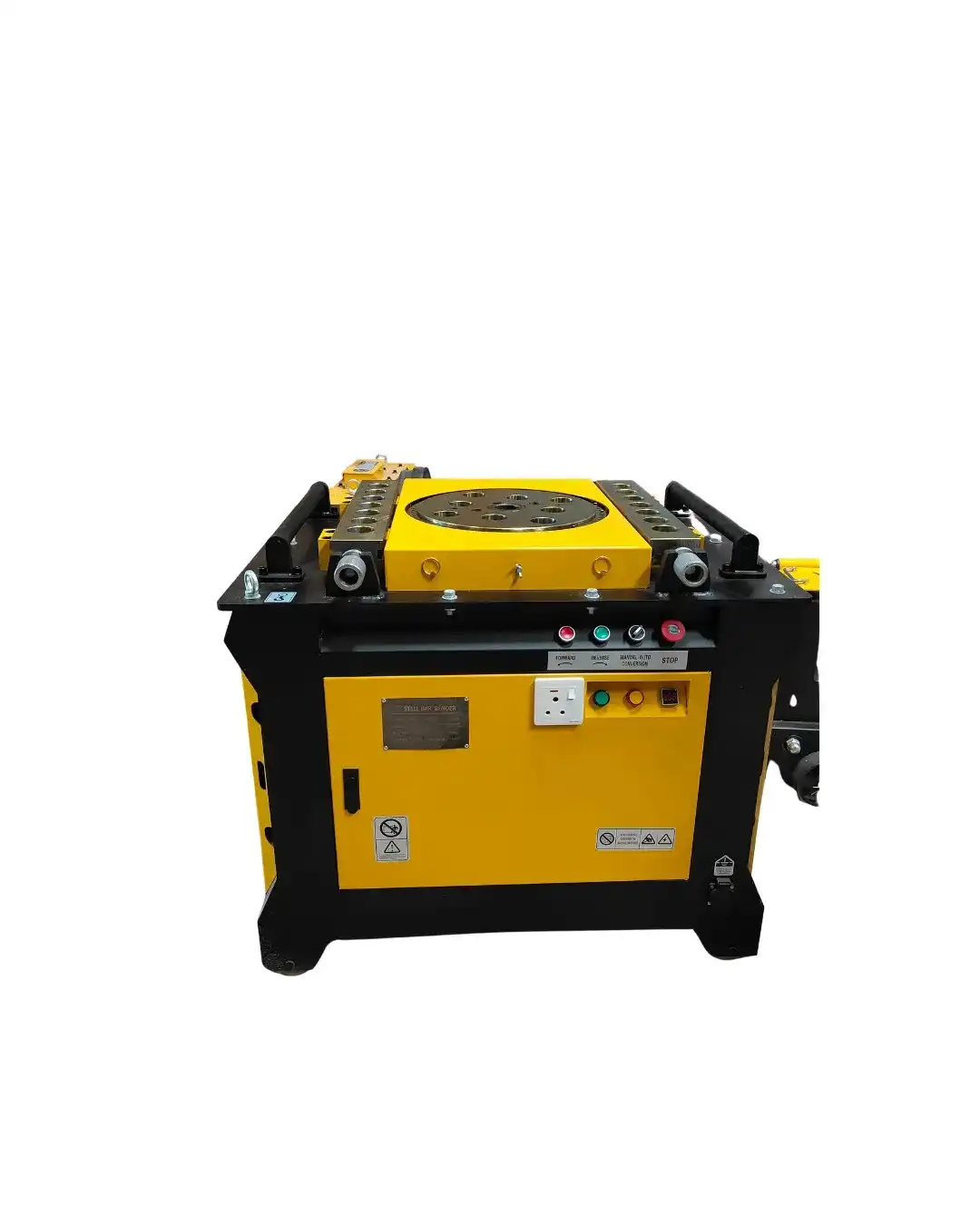

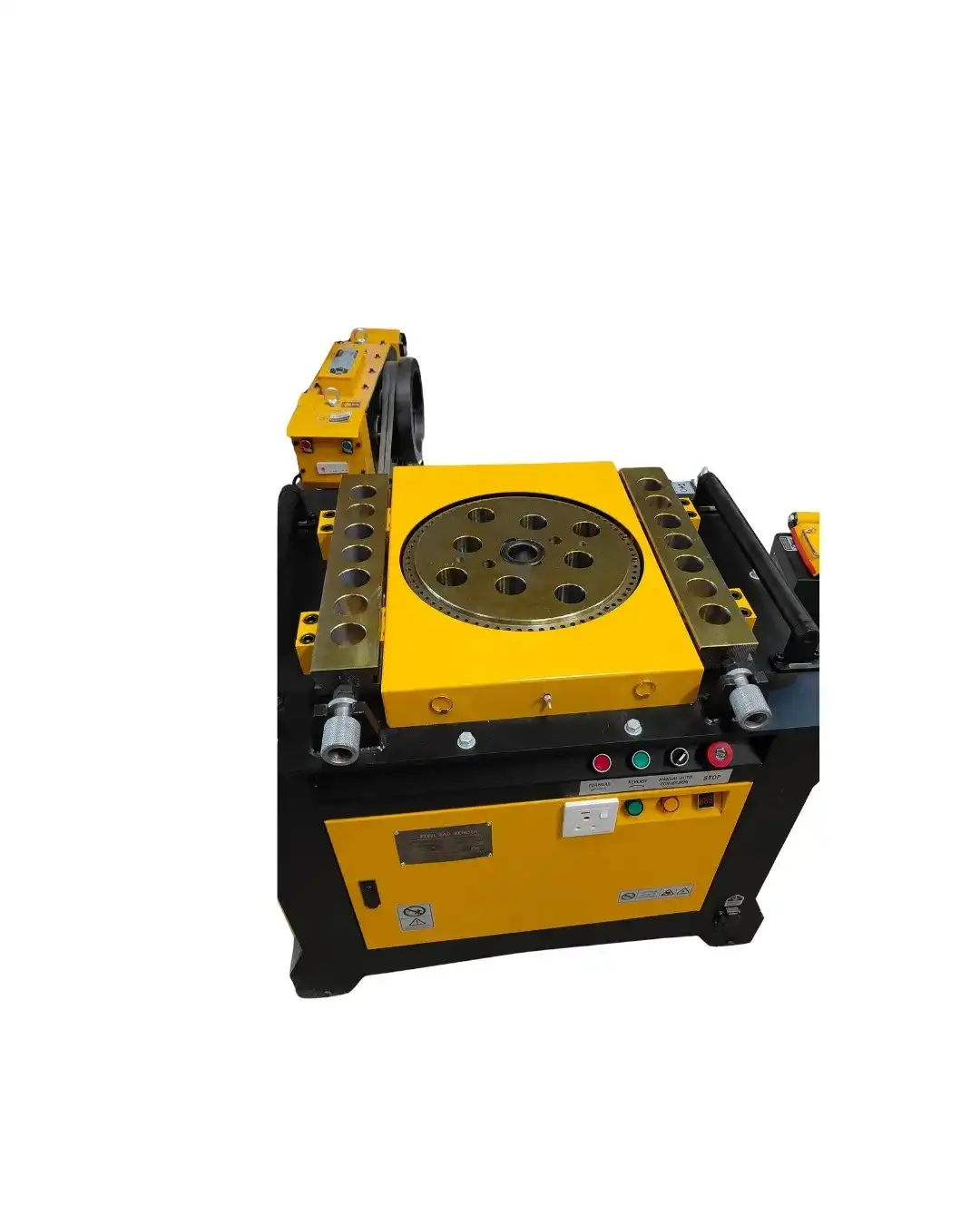

Rebar Bending Machine - GW52 New
₹ 86000
Technical Specifications
| Specification | Value |
|---|---|
| Model No. | GW52 New |
| Rebar Diameter | 6–40 mm |
| Bending Speed | 20 r/min |
| Motor Power | 4 kW Brake Motor |
| Voltage | 380/415 V |
| Plate Diameter | 405 mm |
| Motor Speed | 1440 r/min |
| Driving Mode | Gear Box |
| Table Thickness | 12 mm |
| Weight | 410 kg |
| Dimension | 1000 × 780 × 880 mm |
Product Description
The Rebar Bending Machine - GW52 New is a powerful and reliable solution for precise rebar bending in heavy-duty construction projects. Designed to handle rebar diameters from 6mm to 40mm, it ensures accuracy and efficiency with a bending speed of 20 rotations per minute. Powered by a 4kW brake motor and operating at 1440 RPM, it delivers consistent performance even in demanding environments. Its 405mm plate diameter and 12mm thick worktable provide stability, making it suitable for applications such as bridges, high-rise buildings, and reinforced concrete structures. With a robust gearbox-driven mechanism and compact design, the GW52 New is both durable and easy to transport.
