Suspended Platform - ZLP800
₹ 170000
Technical Specifications
| Specification | Value |
|---|---|
| Model | ZLP 800 |
| Platform Material | M.S Steel / Hot Dip Galvanized / Powder Coated |
| Platform Size | 2.5×2.5 mtr, 1.5×1.5 mtr, Total 7.5 mtr |
| Counter Weight | 1000 kg approx |
| Working Speed | 9–11 m/min |
| Power | 1.8 kW × 2 |
| Voltage | AC 415V – 3 Phase |
| Rated Lifting Force | 8 kN |
| Rated Load | 800 kg |
| Structure Weight | 900–950 kg approx |
Product Description

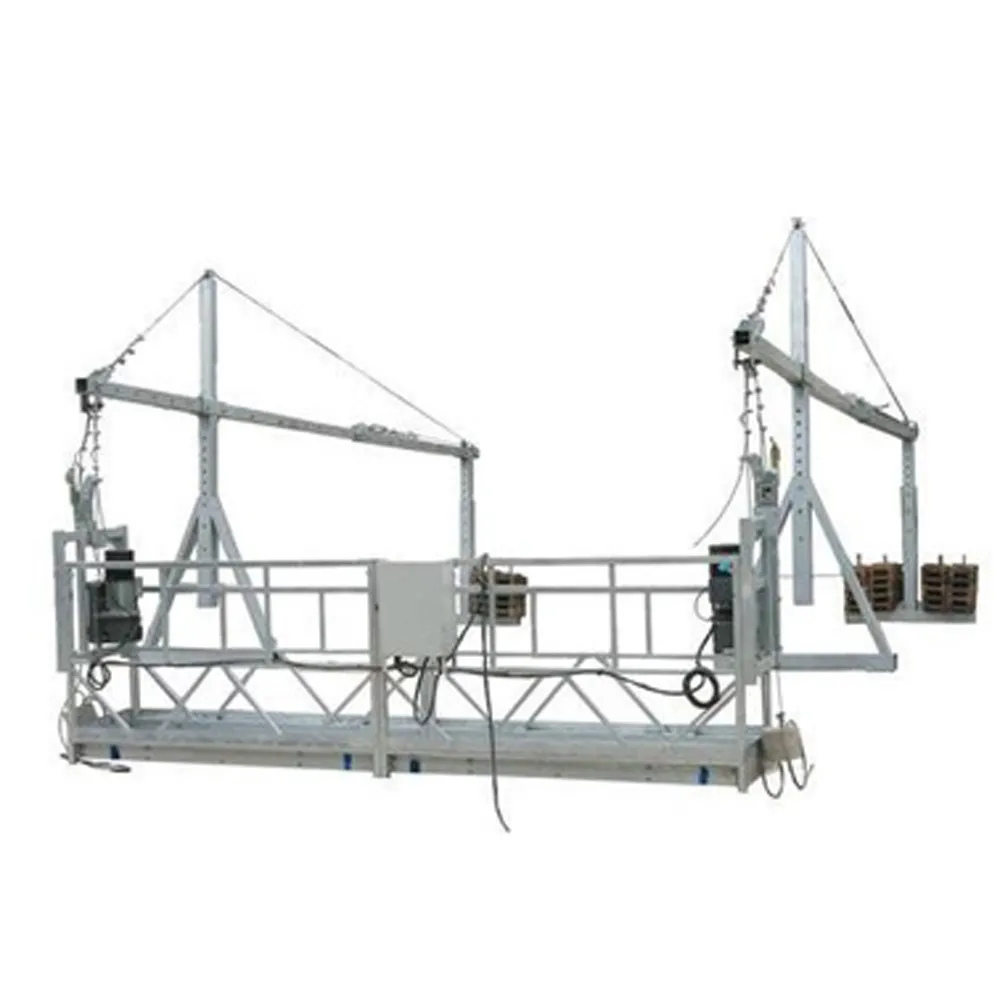

The ZLP800 Suspended Platform is a reliable and versatile solution for working at heights. It features a 7.5-meter platform made of M.S. steel with a rated load of 800 kg. The system is powered by dual motors and equipped with safety locks, wire ropes, and adjustable height functionality, making it ideal for construction and maintenance tasks.
